Knife cutting machine MVS series

The MVS Series Oscillating Blade Cutting Solutions are designed to provide fast, accurate cuts on a wide variety of materials, such as textiles, foams and plastics. These machines combine advanced technology with high efficiency, making them an ideal choice for industries that require precision and versatility. Their ability to adapt to different thicknesses and types of materials ensures optimal, high-quality production in industrial environments.

Design your own oscillating knife cutting machine, select the cutting area to suit your needs, the right head types for your products and take your company to an unmatched level of versatility.

Our equipment is ideal to maximize your design and development department as well as for high volume production, design it to your needs and get great benefits such as: fast production, no cutting tools, no wasted time, wide range of cutting materials.



Heavy-duty vacuum pump works

With vacuum table, great suction and can fix the material very stable.



Computer graphics

Exact size, flexible cutting size.

Select your cutting tools

Head supports

Normally, if the customer needs two tools to work together, we suggest adding an additional head support. For example, cardboard manufacturing needs cutting and creasing working at the same time.

Electric oscillating knife head

The most popular tool in cnc cutting machine, because it can cut series of materials such as leather, carpet, composite materials, cardboard, etc.

Circular blade

Usually for good breathable material, such as cloth, Kevlar, dry carbon fiber fabric, leather, etc. The round blade can also cut some waterproof materials, the cutting speed is relatively fast, but it is not as fine as the oscillating blade because the cutting edge size of the round blade is larger than that of the vibrating blade.

Pneumatic head

For cutting thick or hard materials such as thick rubber, thin PTFE, EPE, corrugated paper, cardboard, etc

Marker

Pressure marking tool for easy folding on cardboard.

Drag Knife

Application: Soft PVC, PP synthetic paper, car sticker, etc. The drag blade will not vibrate when cutting the material, so there will be no vibration lines on the cutting edge of some materials, and the cutting edge will be smoother.

Cutting with angle

Useful for bevel cutting, angle cutting for acoustic board, soft pvc, corrugated cardboard, insulation board and other industries up to 20 mm.

Kisscut head

For cutting only the surface layer of the material.

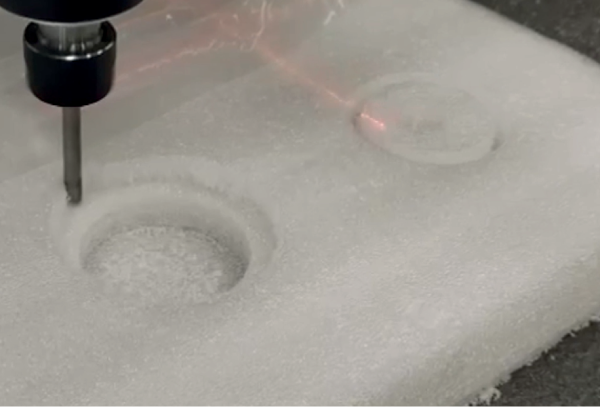

Milling machine

For cutting hard material, such as acrylic, MDF and grooving in EVA, EPE foam.
Power 2.2kw

400w oscillating blade

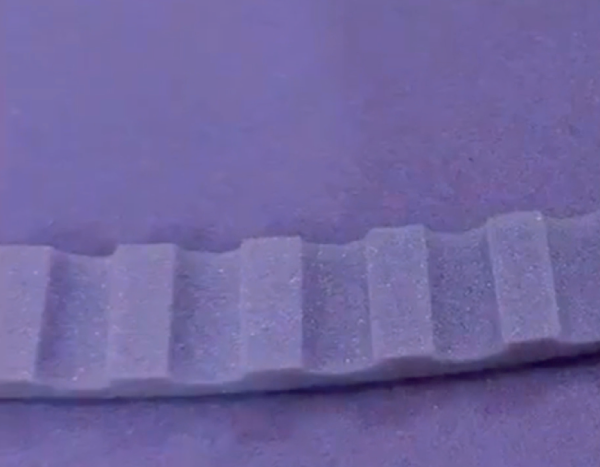

More suitable for EVA foam cutting, it can cut EVA with a smooth edge, no burrs.

Pen

To write numbers and letters on the material

CCD camera

For cutting printed materials, to find registration points, to obtain the position of the design and then cut along the edge.



Automatic Feeding

8-layer automatic feeding grid that allows continuous cutting, contributing to the improvement of the continuity and stability of the production line, reducing waiting time.



Dual head system

Dual-head asynchronous system Suitable for various cuts of shoe uppers, the perfect dual-head asynchronous motion control systems greatly improve the processing speed and quality.



Positioning of the red light

Ensures accurate and error-free cutting during the cutting machine process with oscillating blades.



Pneumatic oscillating cutting

Pneumatic oscillating cutting device. It is power, can meet the need of cutting thick materials.



Electric oscillating cutter

Multiple blades to meet different needs.



Punching module

It can be used for different punching sizes.

Select your work table style

FIXED TABLE FOR LAMINATES

AUTOMATIC FEEDING WITH BELT FOR ROLLS AND SHEETS

Select your cutting tools

JAPAN PANASONIC SERVO MOTOR AND DRIVERS

High precision, high speed and good stability. Cooperate eith planetary reducer to increase the torque and make the machine more powerful.

POSITIONING FUNCTION WITH RED LIGHT

Precise cutting positioning, accurate demonstration of cutting path and range before cutting.

CUTTING BAND

The machines normally use only one side motor and uses belt drive, for your machine we use double motor, one motor and one gearbox each side, so it will be more powerful and higher precision, By eliminating belts and belts we save all those consumables.

HIGH PRECISION ALUMINUM ABSORPTION TABLE

Fan-shaped adsorption hole, great adsorption strength is not easy to deform after long-term use, each part is strict inspection and has been tested.

RACK AND PIÑON TRANSMISSION

Ideal for heavy-duty use with a long service life. HIWIN® type tooling

CONTROL PANEL

Support English, Spanish, Korean, Chinese, Russian, etc. Voltage display screen will show the working voltage of machine directly, very clear during machine working.

HIGH VACUUM POWER

With this vacuum power on the worktable to fix the material, for better suction. And the working table of the machine with the adsorption of the six-portion partition.
